Central Fan Integrated Supply Ventilation System

The central fan integrated supply ventilation approach depends on two patented processes.

Central fan integrated supply ventilation system.

Fan cycling and ventilation damper cycling. Supply ventilation bringing fresh air in from a known source and circulating it through a space via the home s forced air heating and cooling system cfiv central fan integrated ventilation systems provide dilution air fresh air to improve indoor air quality. These systems called central fan integrated supply ventilation systems are controlled by a patented device called the fancycler. The fancycler controls the furnace fan as well as a motorized damper installed on the 6 in.

Central fan integrated system. This type of system is called central fan integrated supply cfis ventilation. The simplest most effective and most economical way to introduce fresh air in homes with central forced air systems is to use the central fan to pull in and distribute a controlled amount of outside air. Passive fresh air intake duct preventing both overventilation and underventilation.

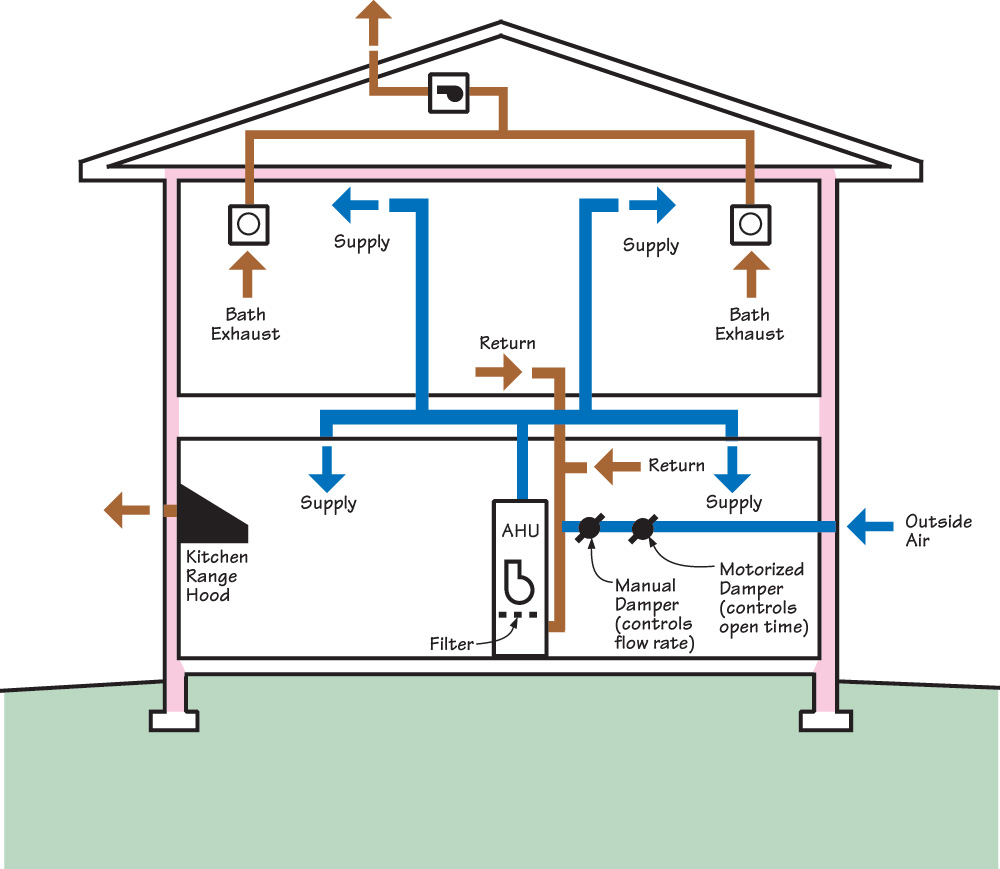

One example of a ventilation system design is a central fan integrated supply cfis system which is made up of a 6 inch outdoor air intake duct connected to the return side of the air handler with a fan cycling control to make sure the fan runs a programmed minimum amount of time. Manual balancing damper in the outside air duct allows adjustment of the flow rate. Central fan integrated supply ventilation with available continuous bathroom exhaust and with integrated dehumidifier. Report about ventilation system design including central fan integrated supply cfis system made up of a 6 inch outdoor air intake duct connected to the return side of the air handler with a fan cycling control to make sure the fan runs a programmed minimum amount of time.

Without those other components though it s just extra duct leakage and air leakage that will rarely provide the right amount of ventilation air. Outside air intake through sidewall via angled fur down in a closet going through a gable end is just as good but avoid going through the roof. Central fan integrated supply cfis systems make use of an existing forced air heating or cooling system.
